BKW Pig Switch
The BKW Pig Switch was developed to run pigs from one pipeline into two pipelines, eliminating Pig Launchers.
We manufacture two types of Pig Switches: Non-Sealing and Sealing.

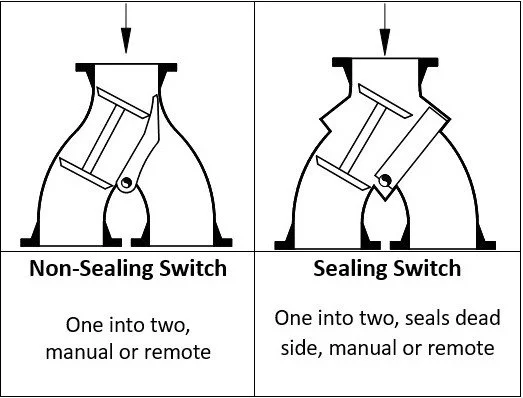

The Non-Sealing Switch uses an arm to direct the pig into the pipeline requiring pigging without restricting the flow into the pipeline not requiring pigging. The two pipelines do not have to be the same diameter.
The Sealing Switch blocks flow to the pipeline that does not require pigging. This type requires special pigs and cannot be switched unless there is zero pressure drop between the legs.
Both types of Switches can be automated for remote operation, and all switches are customized to the application. This includes in and out configurations such as forks, tees, Y's, and various combinations. In addition, vents, drains, and pig indicators can be installed on the switch.
An Engineering History pack is provided with every Switch from BKW which includes a drawing, MTR’s, radiographic inspection reports on all pressure welds, and hydro-static test reports.

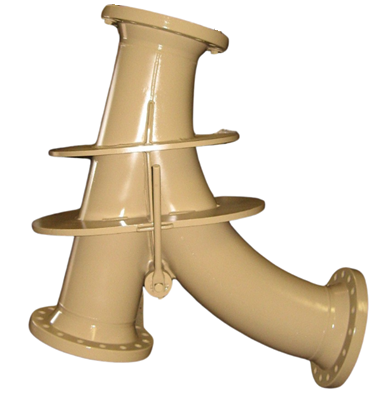

Typical 90° Non-Sealing Pig Switch

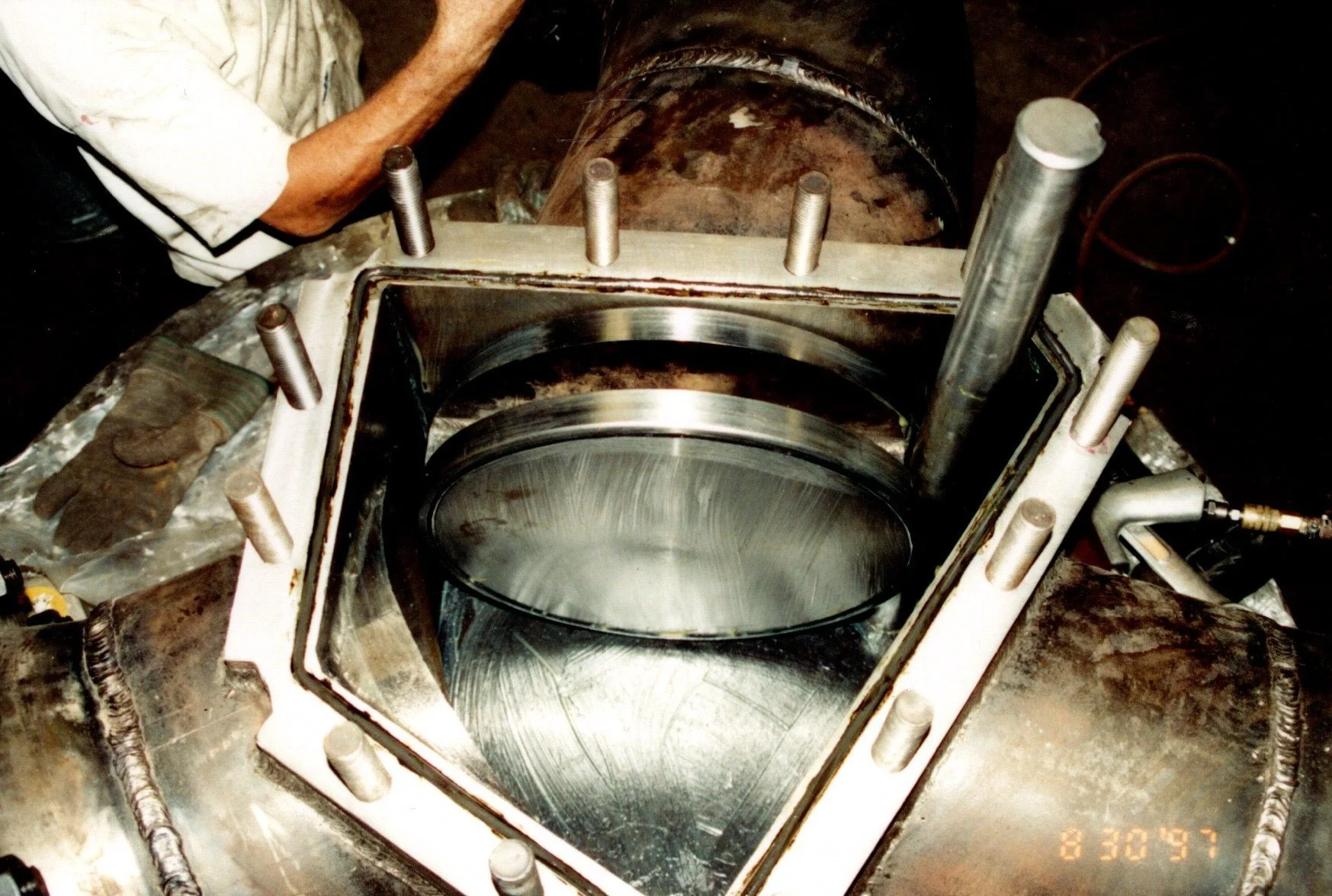

Internals of a Sealing Switch
3-way Pig Switch
BKW has designed a 3-way Pig Switch that allows pigs to travel in six directions as required in gathering systems.

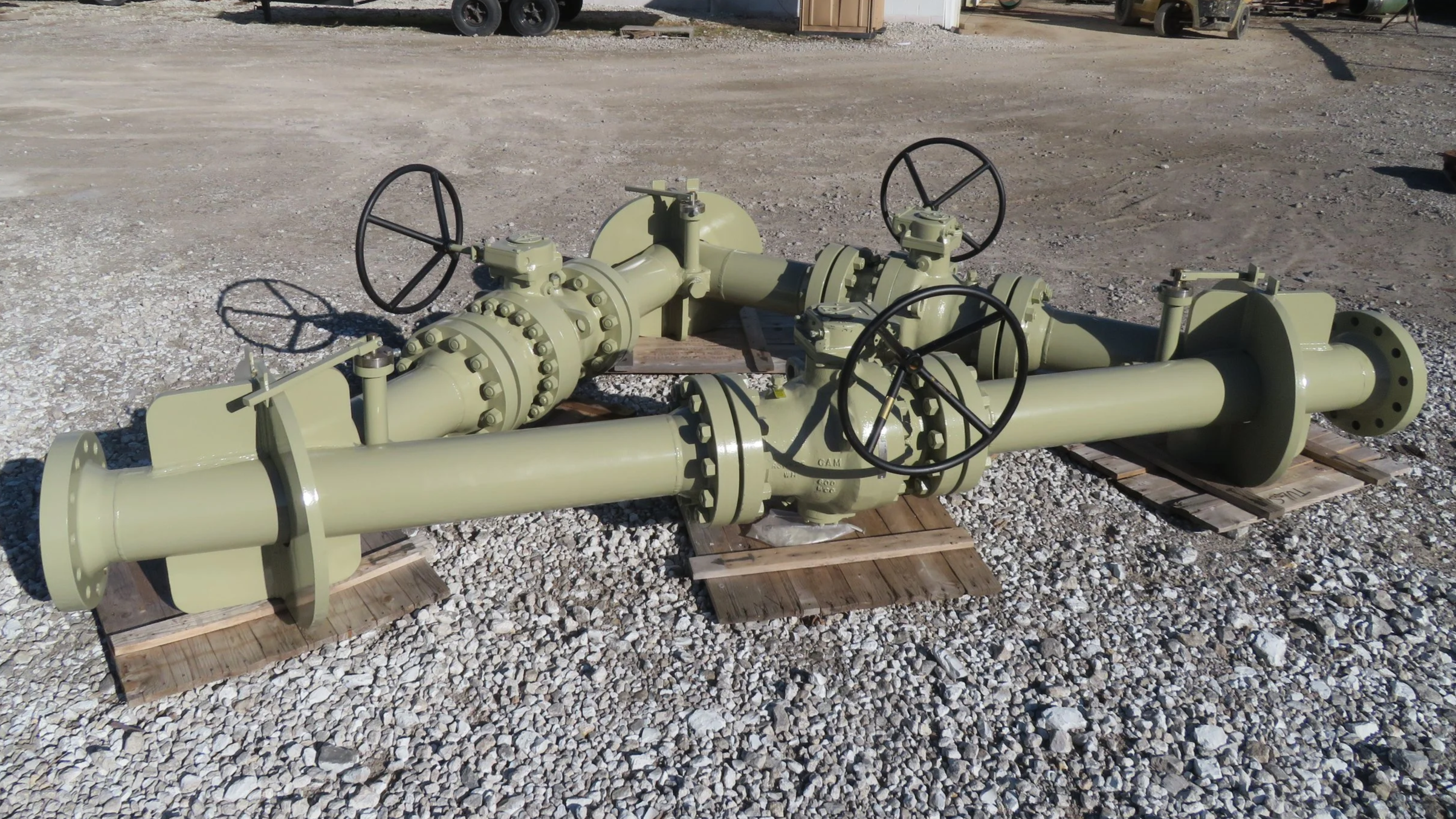

An 8” 3-way Pig Switch with manual operation

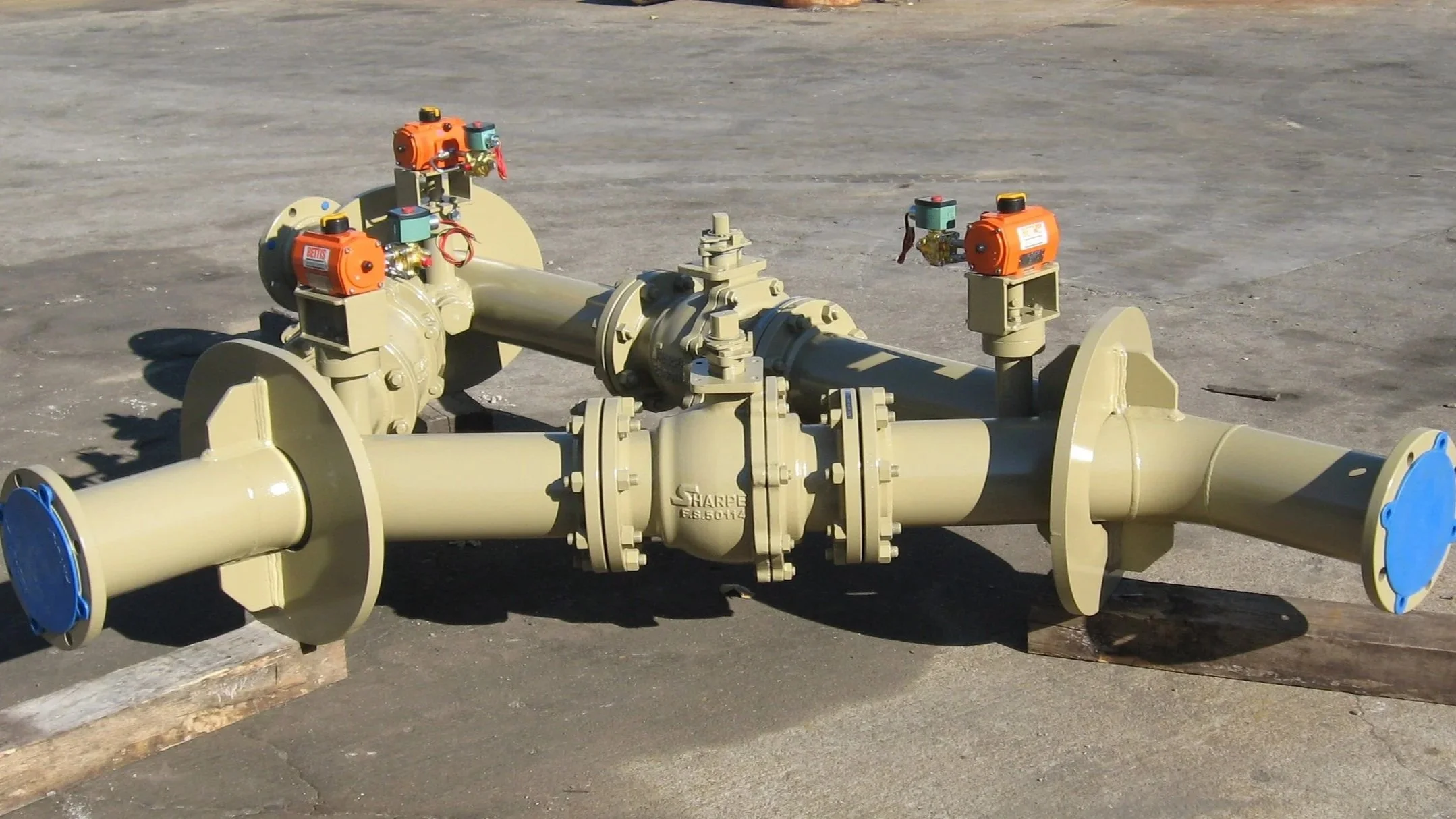

A 6” 3-way automated for remote operation
Pig Switch Customization
If a Switch needs to be buried, BKW can add an extension so it can be operated from aboveground.

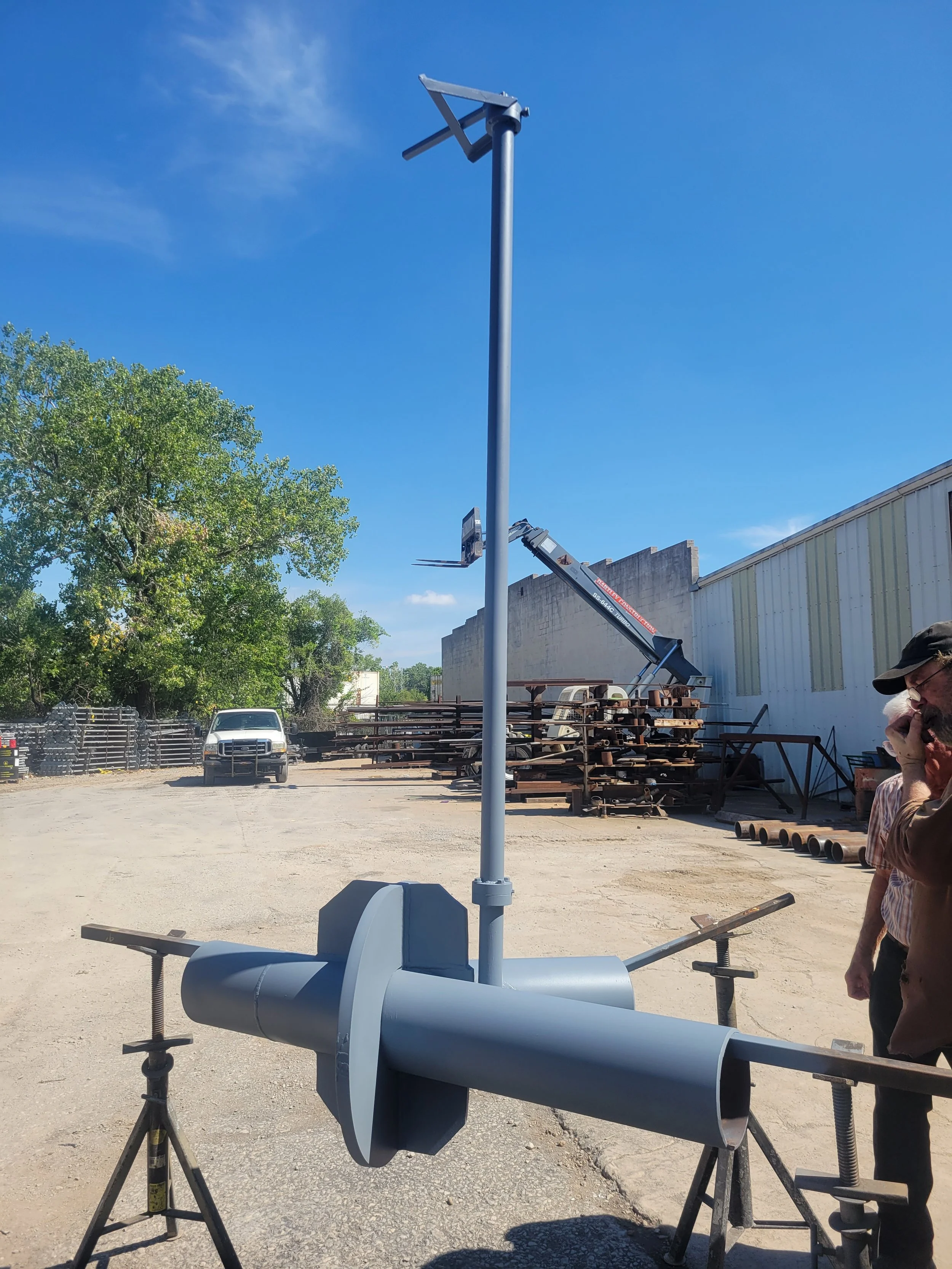

8” Switch with 7’ extension
Request for Quote

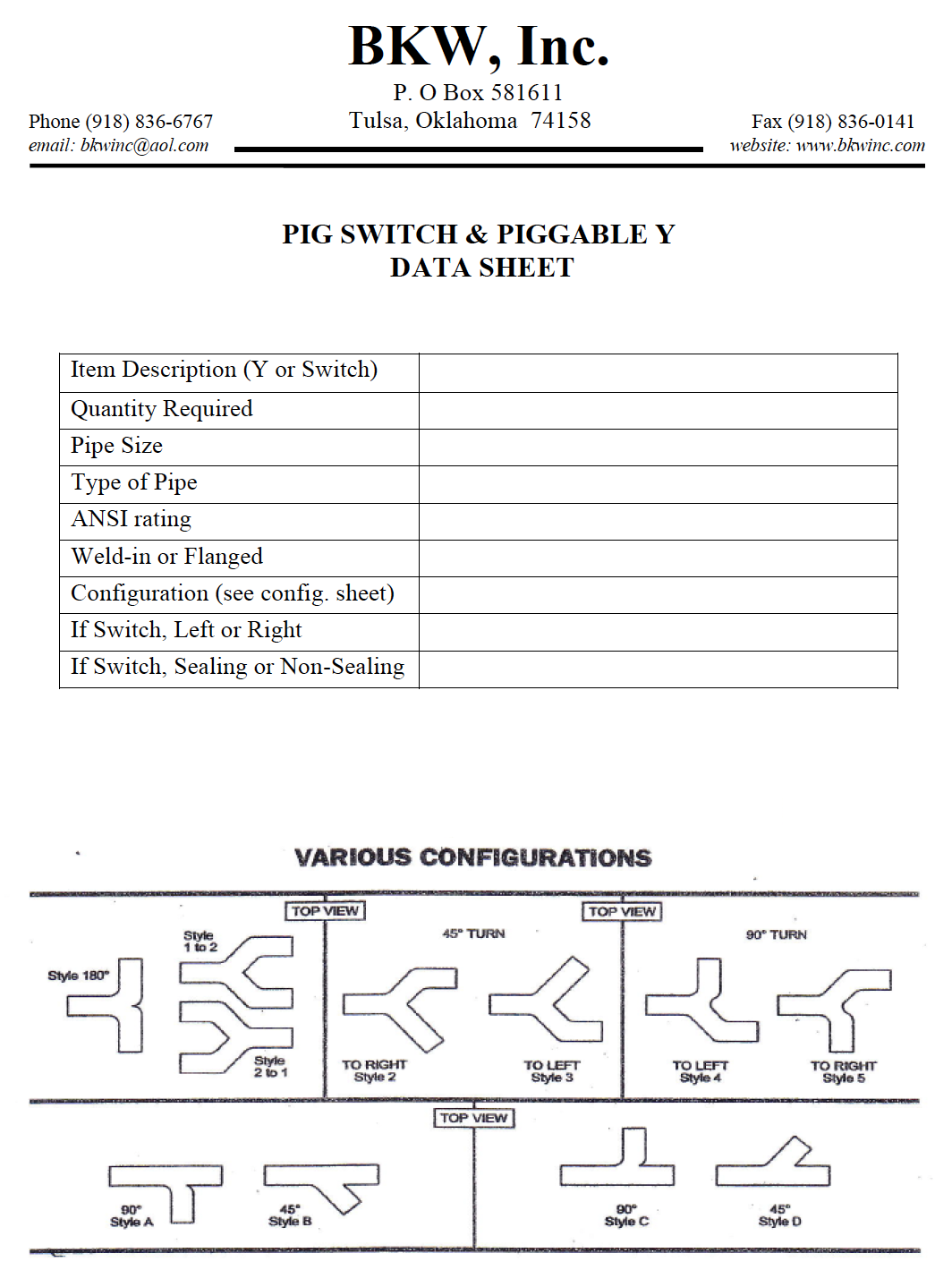

If your Company would like to request a quote for a Switch, please look at the following data sheet and email us with as much information as you can.
